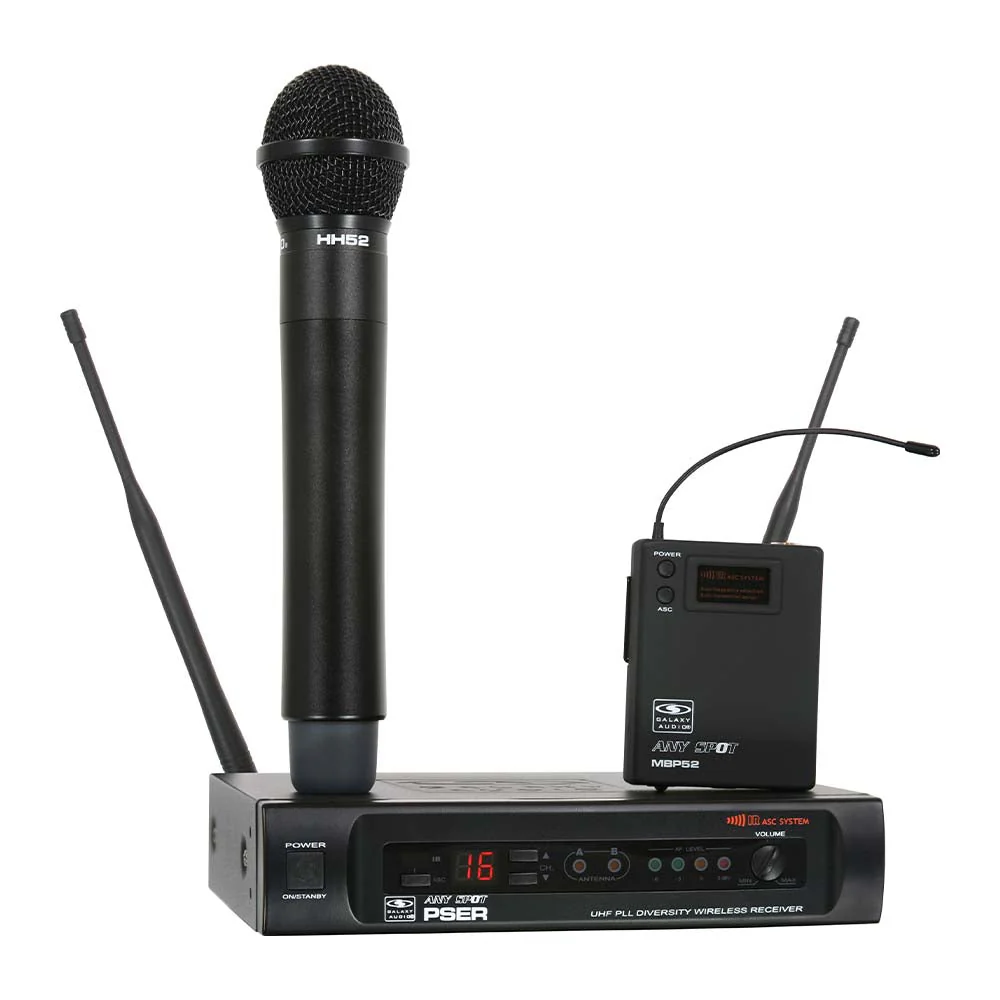

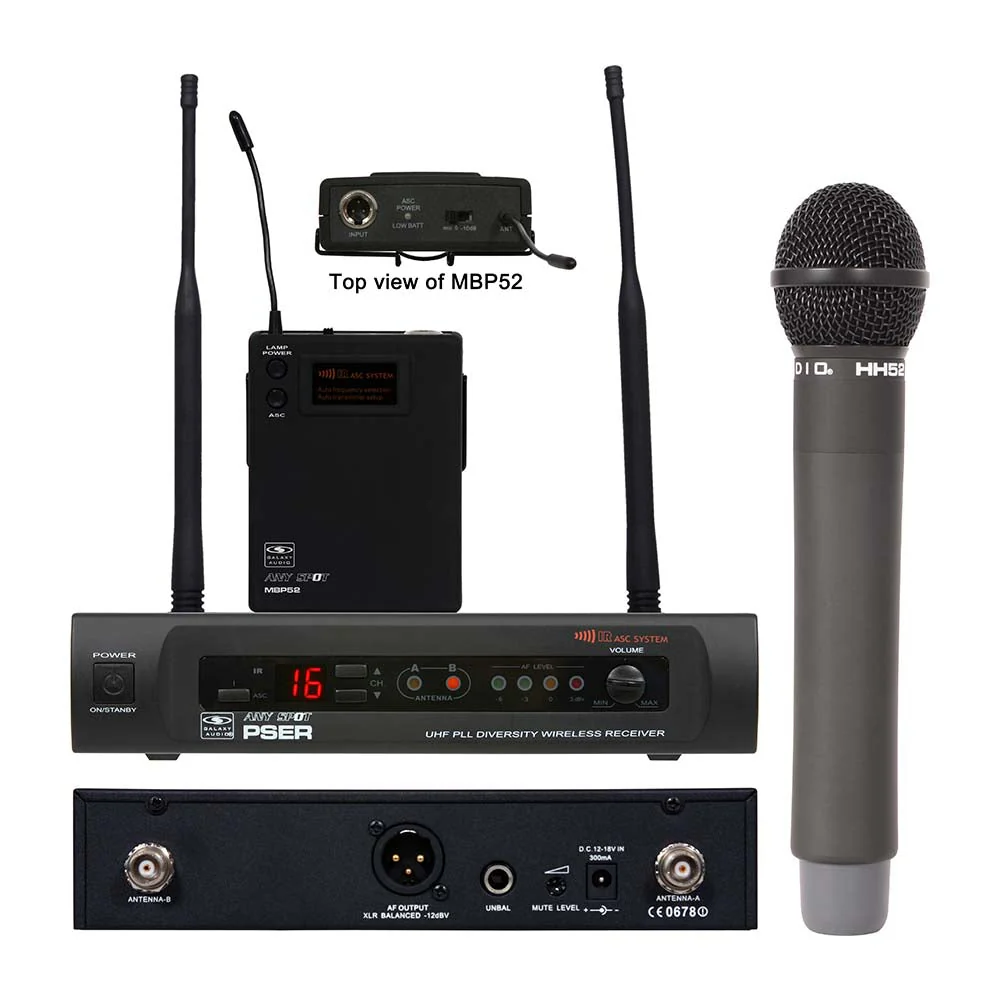

Galaxy PSE Economical 16 Ch L Rackable Wireless Mic System
DESCRIPTION
The PSE system is a UHF diversity receiver withĀ 16 selectable channels. The multi channel microphone receiverĀ features a volume control, channel display,Ā Diversity AntennasĀ and IR Sync. The PSE has an XLR 1/4" output and squelch adjustment. The PSE is available with aĀ handheld,Ā body packĀ withĀ headset,Ā lav, or instrument cable.Ā
The PSER can be used and will sync with either theĀ HH52Ā orĀ MBP52Ā transmitters. The HH52 has a gain control and an on/off switch. Both transmitters are powered by 2 AA batteries. The MBP52 body pack transmitter has a 0/-10/Mic selector switch.
- 300' Range
- 16 Selectable UHF Frequencies
- Diversity Antennas
- Single/Dual Rack MountĀ Included
PSER Receiver
- Output Volume Control
- IR Sync Receiver to Transmitter
- AF Level Indicator
- Active Antenna Indicator
- Squelch Adjustment
- XLR / 1/4" Outputs
- Detachable BNC Antennas
- Metal Chassis
HH52 Transmitter
- Dynamic Microphone Element
- On/Off Switch
- IR Sync Transmitter to Receiver
- High/Low RF Switch
- 10 mW / 5 mW
- Metal Chassis
- Operates on 2 AA Batteries (up to 8 hours Alkaline)
- Dimensions: 9.8" x 2.1" (250 x 53 mm) (L x Dia.)
- Weight: 9.5 oz. (270 g)
MBP52 Transmitter
- Low Battery Indicator
- 3 Position Switch
- IR Sync Transmitter to Receiver
- Mic/0/-10dB
- Operates on 2 AA Batteries (up to 8 hours Alkaline)
- Dimensions: 3.3" x 2.6" x 1" (85 x 65 x 24 mm) (HxWxD)
- Weight: 2.8 oz (80 g)
SPECIFICATIONS
| PSE SYSTEM SPECS | |
|---|---|
| Available Frequencies | 16 |
| Frequency Ranges | CODE D 584~607MHz CODE N 518~542MHz |
| Band | UHF |
| Operating Range | Under Typical Conditions 300' (92 m), actual range depends on RF signal absorption, reflection, and interference. |
| Audio Frequency Response | (+/-3 dB) 60 Hz ~ 16 kHz |
| Total Harmonic Distortion | (+/-30 kHz deviation 1 kHz tone): <1% |
| Dynamic Range | >90 dB A-weighted |
| Operating Temperature Range | 14Ā° F to 122Ā° F (-10Ā° C to 50Ā° C), battery characteristics may limit this range |
| PSER RECEIVER | |
| Audio Output Level (+/-30 kHz deviation, 1 kHz tone) | XLR Connector (into 600 Ohms load) -12 dBV 1/4" Connector (into 3 k Ohms load) -18 dBV |
| Output Connections | 1 Male XLR Balanced 1/4" Balanced |
| Output Impedance | XLR connector 200 Ohms 1/4" connector 1 k Ohms |
| XLR Output | Impedance balanced Pin 1: Ground (cable shield) Pin 2: Audio + Pin 3: No Audio - |
| Sensitivity | -93 dBm for 30 dB |
| Image Rejection | >90 dB |
| Casing | Metal Chassis EIA STANDARD 1 U |
| Dimensions | 1.7" x 8.3" x 6.3" (44 x 212 x 160 mm) |
| Weight | 31 oz (880 g) |
| Power Requirements | 12-18 V DC at 300 mA, supplied by external power supply |
| HH52 HANDHELD TRANSMITTER | |
| Max Audio Input Level | 0 dBV |
| Gain Adjust | Trim Pot |
| RF Output | 10 mW, 5 mW |
| Frequency Response | 70 Hz ~ 15 kHz |
| Dimensions | 9.8" x 2.1" (250 x 53 mm) (LxDia) |
| Weight | 9.5 oz (270 g) (without batteries) |
| Power Requirements | 2 "AA" size alkaline or rechargeable batteries |
| Battery Life | About 8 hours (alkaline) |
| MBP52 BODY PACK TRANSMITTER | |
| Max Audio Input Level | 0 dBV to +10 dBV |
| Gain Adjust | Mic / 0 dB / -10 dB |
| RF Output | 10 mW |
| Input Impedance | 5 k Ohms |
| Dimensions | 3.3" x 2.6" x 1" (85 x 65 x 24 mm) (HxWxD) |
| Weight | 3.0 oz (85 g) |
| Power Requirements | 2 "AA" size alkaline or rechargeable batteries |
| Battery Life | About 8 hours (alkaline) |
DESCRIPTION
The PSE system is a UHF diversity receiver withĀ 16 selectable channels. The multi channel microphone receiverĀ features a volume control, channel display,Ā Diversity AntennasĀ and IR Sync. The PSE has an XLR 1/4" output and squelch adjustment. The PSE is available with aĀ handheld,Ā body packĀ withĀ headset,Ā lav, or instrument cable.Ā
The PSER can be used and will sync with either theĀ HH52Ā orĀ MBP52Ā transmitters. The HH52 has a gain control and an on/off switch. Both transmitters are powered by 2 AA batteries. The MBP52 body pack transmitter has a 0/-10/Mic selector switch.
- 300' Range
- 16 Selectable UHF Frequencies
- Diversity Antennas
- Single/Dual Rack MountĀ Included
PSER Receiver
- Output Volume Control
- IR Sync Receiver to Transmitter
- AF Level Indicator
- Active Antenna Indicator
- Squelch Adjustment
- XLR / 1/4" Outputs
- Detachable BNC Antennas
- Metal Chassis
HH52 Transmitter
- Dynamic Microphone Element
- On/Off Switch
- IR Sync Transmitter to Receiver
- High/Low RF Switch
- 10 mW / 5 mW
- Metal Chassis
- Operates on 2 AA Batteries (up to 8 hours Alkaline)
- Dimensions: 9.8" x 2.1" (250 x 53 mm) (L x Dia.)
- Weight: 9.5 oz. (270 g)
MBP52 Transmitter
- Low Battery Indicator
- 3 Position Switch
- IR Sync Transmitter to Receiver
- Mic/0/-10dB
- Operates on 2 AA Batteries (up to 8 hours Alkaline)
- Dimensions: 3.3" x 2.6" x 1" (85 x 65 x 24 mm) (HxWxD)
- Weight: 2.8 oz (80 g)
SPECIFICATIONS
| PSE SYSTEM SPECS | |
|---|---|
| Available Frequencies | 16 |
| Frequency Ranges | CODE D 584~607MHz CODE N 518~542MHz |
| Band | UHF |
| Operating Range | Under Typical Conditions 300' (92 m), actual range depends on RF signal absorption, reflection, and interference. |
| Audio Frequency Response | (+/-3 dB) 60 Hz ~ 16 kHz |
| Total Harmonic Distortion | (+/-30 kHz deviation 1 kHz tone): <1% |
| Dynamic Range | >90 dB A-weighted |
| Operating Temperature Range | 14Ā° F to 122Ā° F (-10Ā° C to 50Ā° C), battery characteristics may limit this range |
| PSER RECEIVER | |
| Audio Output Level (+/-30 kHz deviation, 1 kHz tone) | XLR Connector (into 600 Ohms load) -12 dBV 1/4" Connector (into 3 k Ohms load) -18 dBV |
| Output Connections | 1 Male XLR Balanced 1/4" Balanced |
| Output Impedance | XLR connector 200 Ohms 1/4" connector 1 k Ohms |
| XLR Output | Impedance balanced Pin 1: Ground (cable shield) Pin 2: Audio + Pin 3: No Audio - |
| Sensitivity | -93 dBm for 30 dB |
| Image Rejection | >90 dB |
| Casing | Metal Chassis EIA STANDARD 1 U |
| Dimensions | 1.7" x 8.3" x 6.3" (44 x 212 x 160 mm) |
| Weight | 31 oz (880 g) |
| Power Requirements | 12-18 V DC at 300 mA, supplied by external power supply |
| HH52 HANDHELD TRANSMITTER | |
| Max Audio Input Level | 0 dBV |
| Gain Adjust | Trim Pot |
| RF Output | 10 mW, 5 mW |
| Frequency Response | 70 Hz ~ 15 kHz |
| Dimensions | 9.8" x 2.1" (250 x 53 mm) (LxDia) |
| Weight | 9.5 oz (270 g) (without batteries) |
| Power Requirements | 2 "AA" size alkaline or rechargeable batteries |
| Battery Life | About 8 hours (alkaline) |
| MBP52 BODY PACK TRANSMITTER | |
| Max Audio Input Level | 0 dBV to +10 dBV |
| Gain Adjust | Mic / 0 dB / -10 dB |
| RF Output | 10 mW |
| Input Impedance | 5 k Ohms |
| Dimensions | 3.3" x 2.6" x 1" (85 x 65 x 24 mm) (HxWxD) |
| Weight | 3.0 oz (85 g) |
| Power Requirements | 2 "AA" size alkaline or rechargeable batteries |
| Battery Life | About 8 hours (alkaline) |
