DESCRIPTION

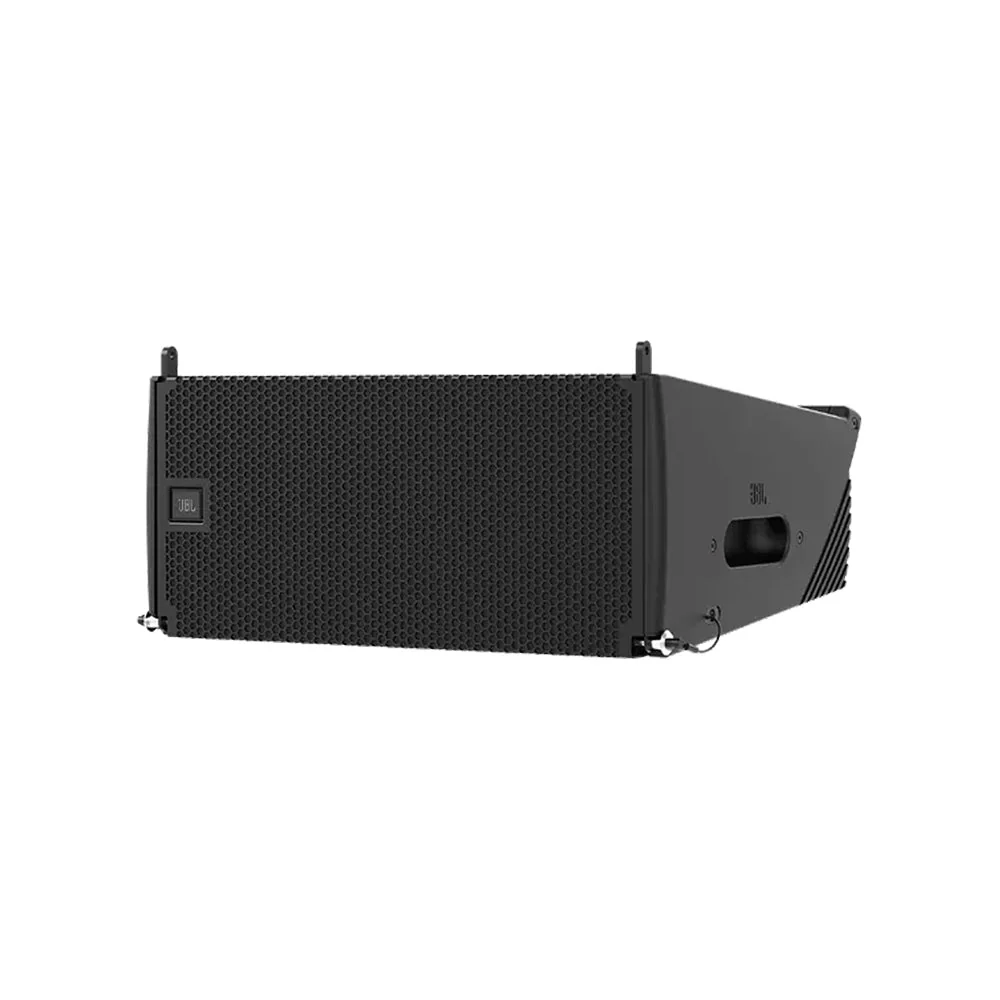

 The SRX906LA is a compact, two-way, active line array element that can cover a variety of small to midsize applications, including rental houses, touring artists, DJs, and installations.

Built-in DSP and amplification offer a plug and play experience while providing consistency and optimum performance anywhere in the world. JBL transducers and a new acoustic design provide excellent sound fidelity and best-in-class maximum SPL. The product features dual 6.5-inch neodymium Differential Drive® woofers and a three-inch compression driver. The computer-optimized enclosure is made out of composite material and offers excellent performance while remaining compact and lightweight. An innovative three-point rigging system and a full set of accessories allow systems to scale and solve the diverse needs of production companies and installation houses. A new, full-featured software package gives users control of the system on various platforms, including Windows, macOS, and iPad OS.

FEATURES

• High-performance, high-density system solution in a truck-pack friendly format
• High-power-handling transducers deliver low distortion, high fidelity, and class-leading output
• Built-in, passively cooled Class D amplification with a universal power supply
• Dual Ethernet ports with Neutrik etherCON connectors
• Supports HARMAN HControl Ethernet
• User-controllable DSP
• LevelMax limiting uses sophisticated excursion-control algorithms to protect transducers

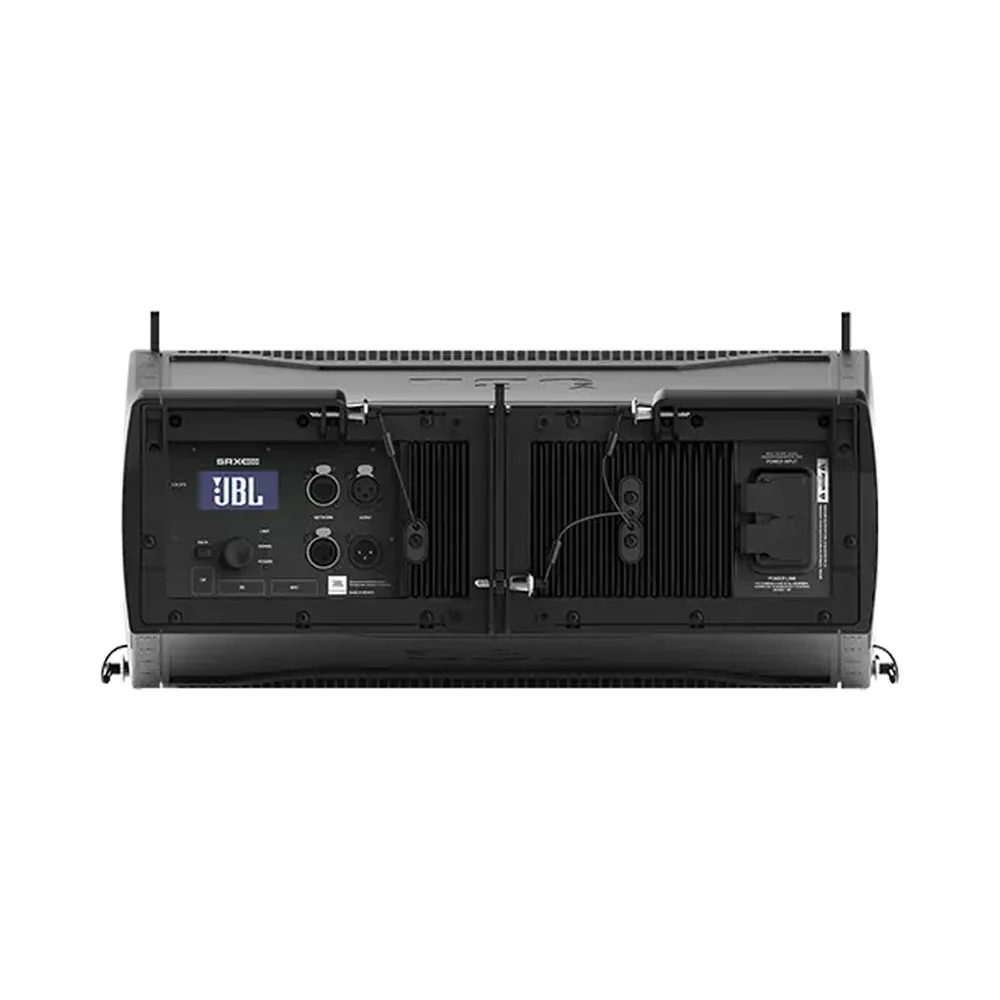

• Rear-panel LCD provides complete access to control features
• Reinforced composite loudspeaker enclosures
• Innovative three-point rigging system

SPECIFICATIONS

• Depth (in): 16.5

• Height (in): 9.5

• Weight (lbs): 37

• Width (in): 19.9

• Coverage Pattern (Nominal): 120°

• Frequency Range Hz (-10 dB): 63 - 17000

• Maximum SPL (peak dB): 134

• Power Rating (W, Continuous): 600

• Power Rating (W, Peak): 800
