DESCRIPTION

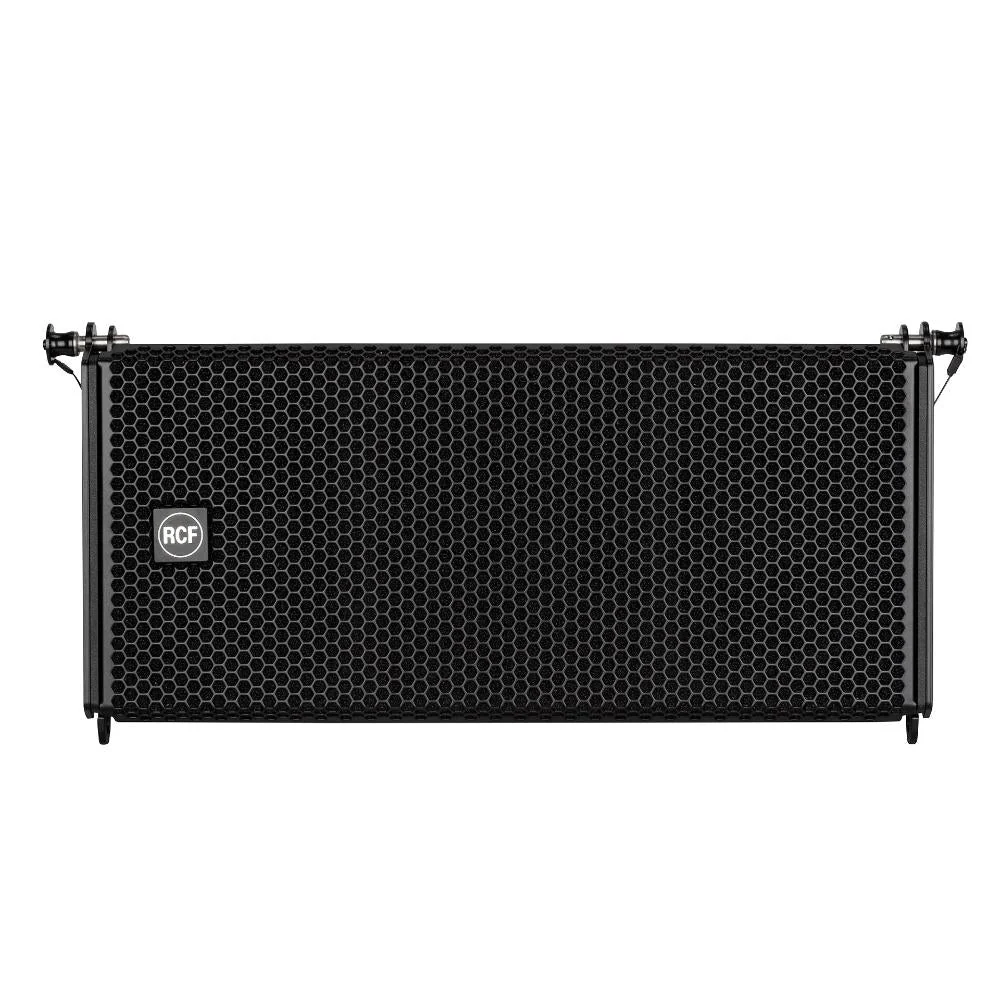

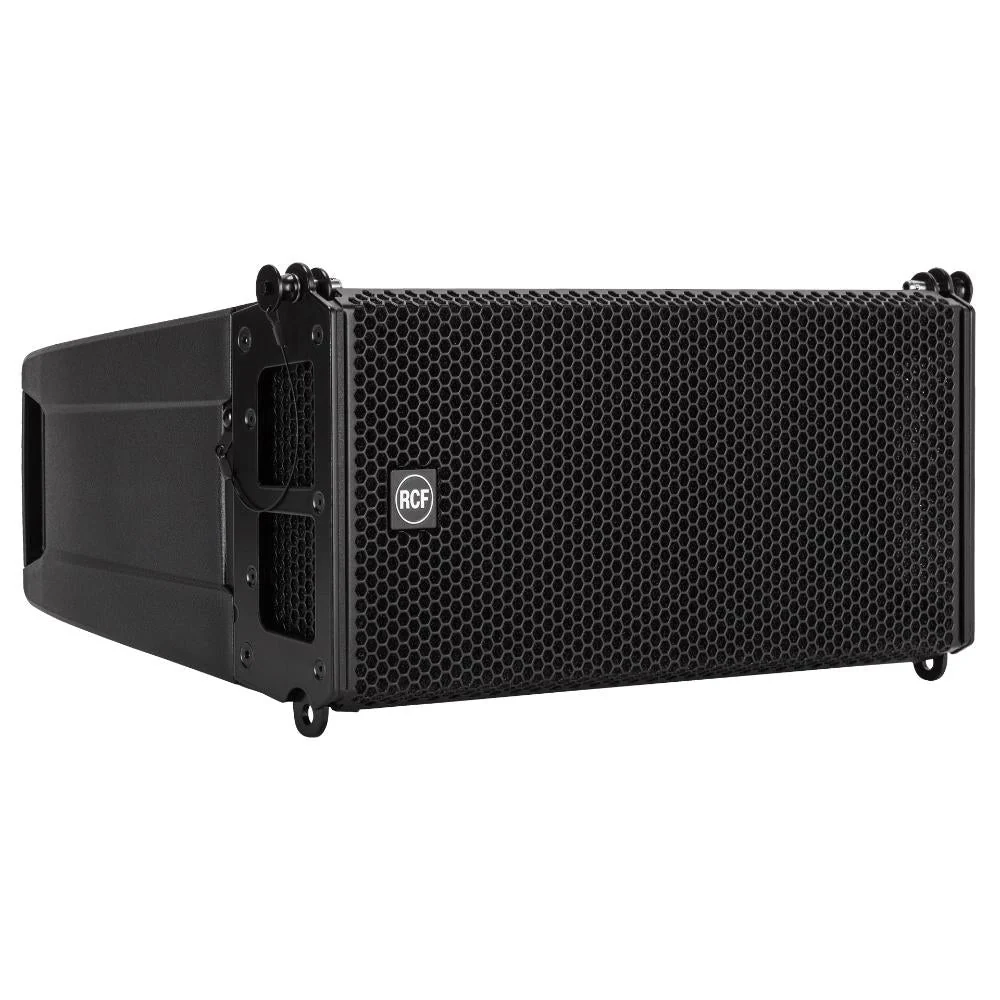

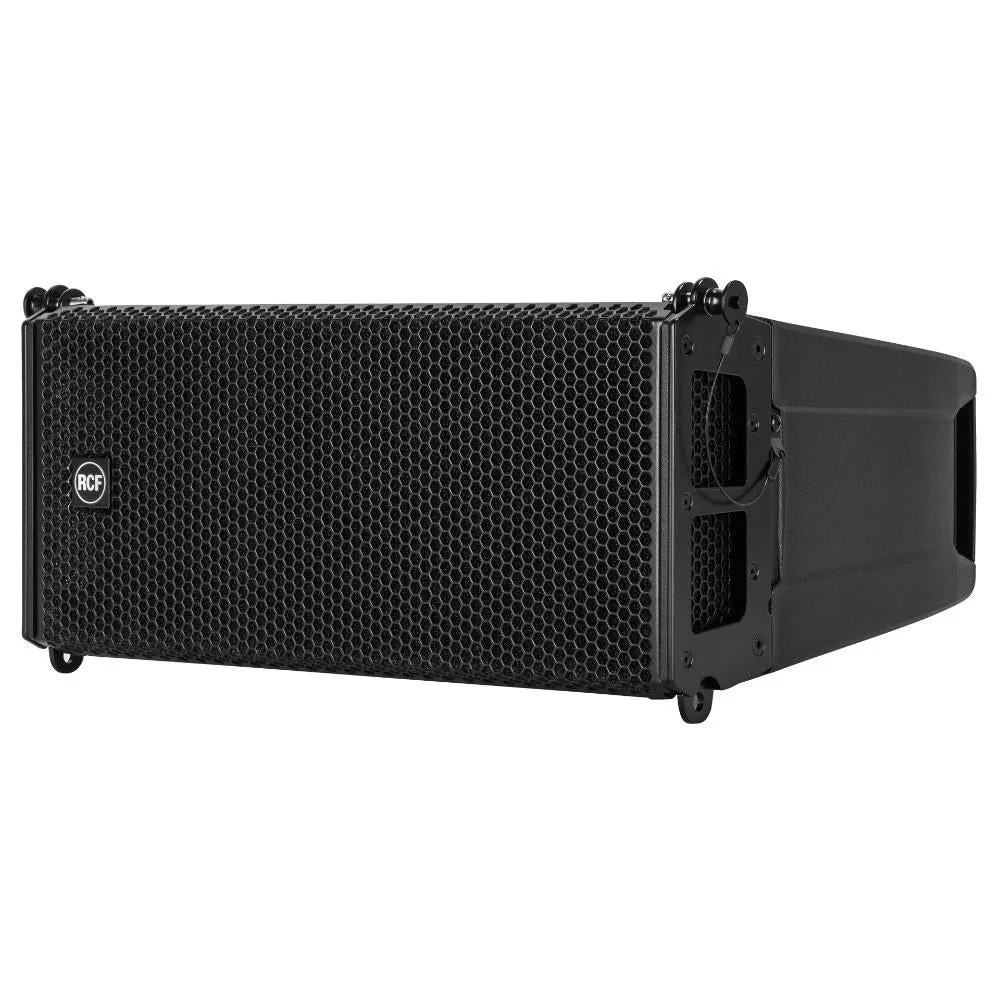

The HDL6-A is the ideal choice when line array performance is needed and a fast and easy set-up a must. A 1400 W 2-channel class-D amplifier powers the system. A powerful DSP processes the sound including crossover, phase correction, limiting and protection. The system features state-of-the-art RCF transducers – two powerful 6.0” woofers for a solid bass reproduction plus a high powered 1.7” voice coil compression driver mounted on a precise 100° x 10° waveguide delivers vocal clarity with high definition and an incredible dynamic. The HDL 12-AS is the ideal flyable bass complement for the HDL 6-A array system.

FEATURES

• 1400 W, two-way amplification
• 131 dB max SPL
• 1.7" voice coil neodymium compression driver
• 2 x high power neodymium 6.0"woofers
• 48 kHz, 32 bit floating point DSP processing
• Symmetrical design
• Extremely low weight
• FiRPHASE processing
• Includes (1) HDL6-A 2-way Line Array

SPECIFICATIONS

• Acoustic:
• Frequency Response: 65 Hz ÷ 20000 Hz
• Max SPL @ 1m: 131 dB
• Horizontal coverage angle: 100°
• Vertical coverage angle: 10°

• Transducers
• Compression Driver: 1 x 1.0'' neo, 1.75'' v.c
• Woofer: 2 x 6.0'' neo, 2.0'' v.c

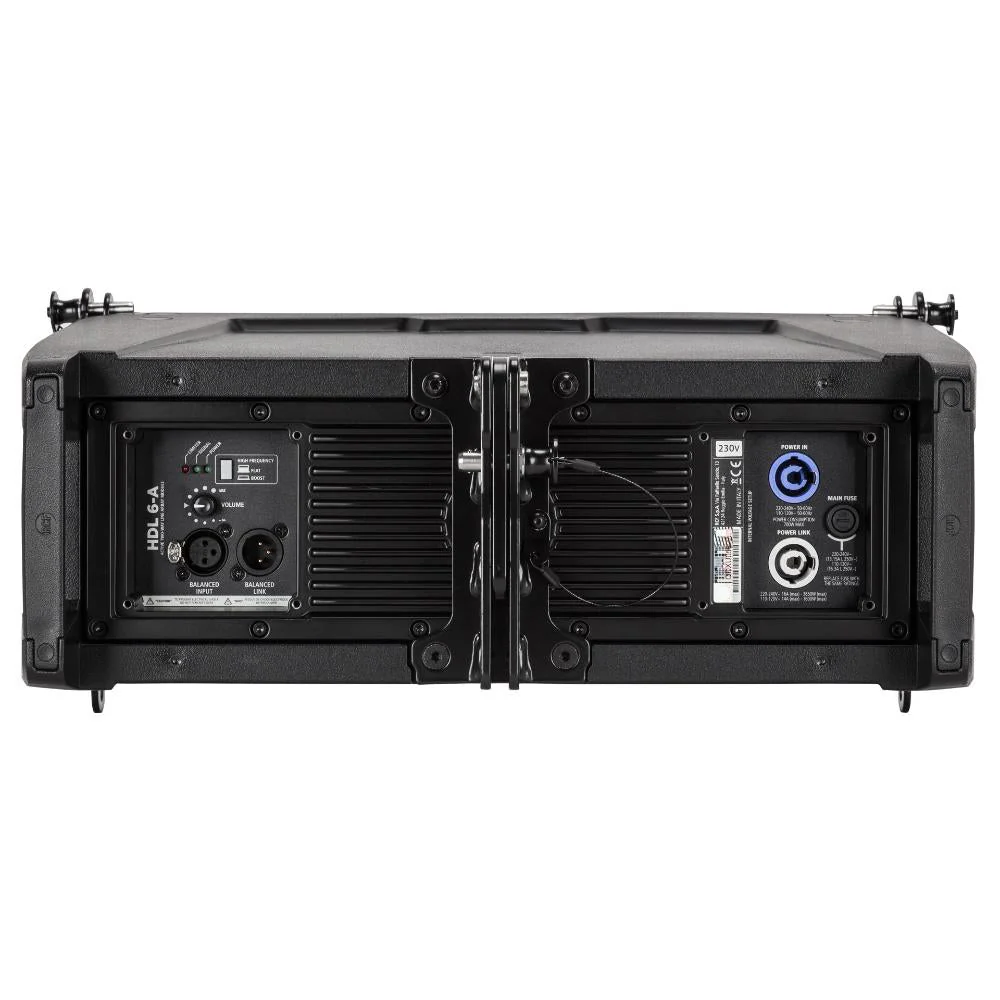

• Input/Output Section
  • Input signal: bal/unbal
  • Input connectors: XRL
  • Output connectors: XLR
  • Input sensitivity: +4dBu

• Processor Section
  • Crossover frequencies: 900Hz
  • Protections: Thermal, RMS
  • Limiter: Soft Limiter
  • Controls: HF Correction

• Power Section
• Total Power: 1400 W Peak, 700 W RMS
• High frequencies: 400 W Peak, 200 W RMS
• Low frequencies: 1000 W Peak, 500 W RMS
• Cooling: Convection
• Connections: Powercon IN/OUT

• Physical Specifications:
  • Cabinet/Case Material: PP Composite
    Hardware: Array fittings
    Handles: 2 Back
    Grille: Steel
    Color: Black, White
• Size:
• Height: 237 mm / 9.33 inches
• Width: 470 mm / 18.5 inches
• Depth: 377 mm / 14.84 inches
• Weight: 11.6 kg / 25.57 lbs

• Shipping Information:
• Package Height: 260 mm / 10.24 inches
• Package Width: 550 mm / 21.65 inches
• Package Depth: 425 mm / 16.73 inches
• Package Weight: 13 kg / 28.66 lbs
