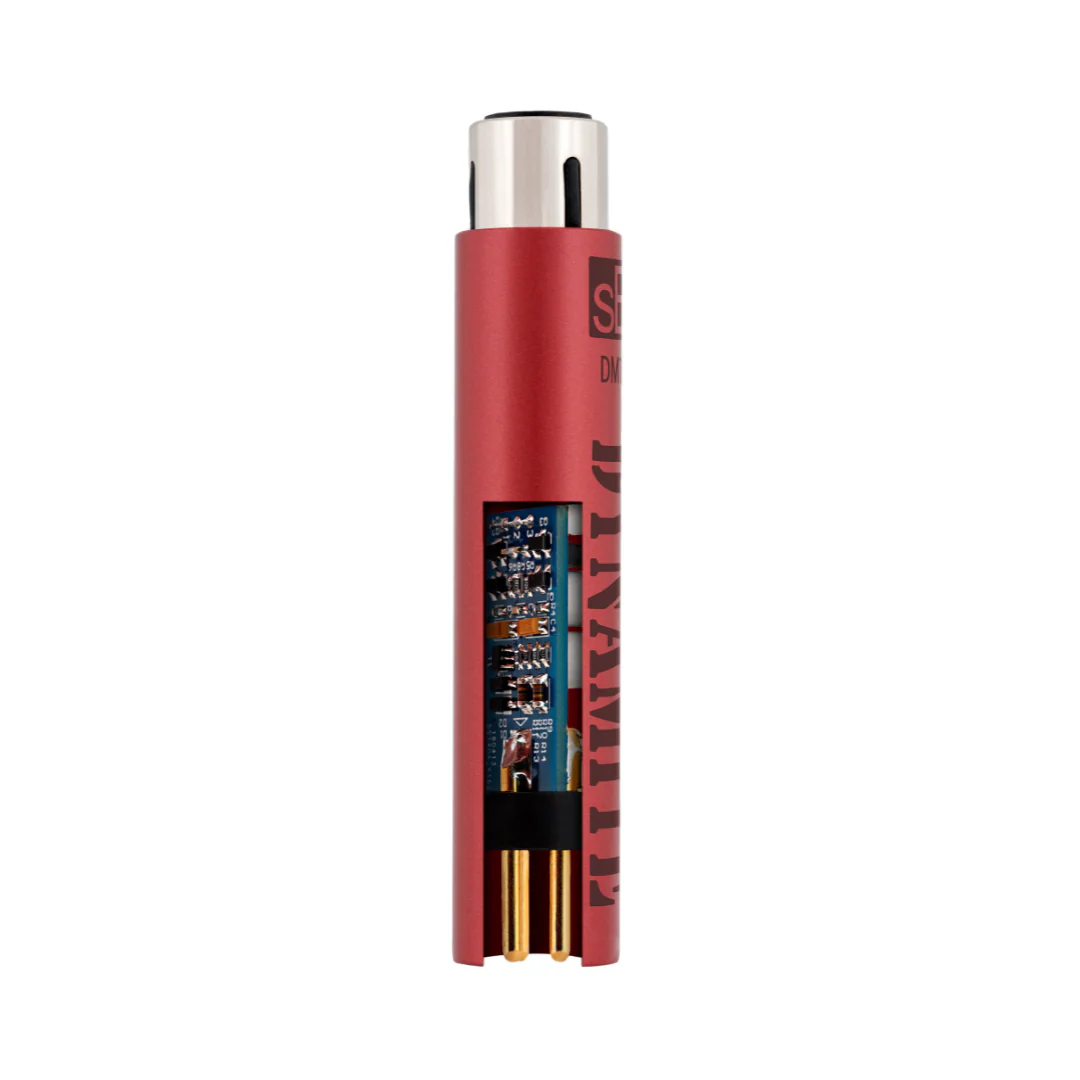

sE Electronics DM1 Dynamite Active In-line Mic Preamp with 28dB Gain
WHAT'S IN THE BOX
-
DM1
-
sE Logo Sticker
-
User manual with warranty card
SPECIFICATIONS
Description
An ultra-slim active inline preamp that fits seamlessly between your mic and mic pre, providing a massive +28dB of clean, transparent gain for all your dynamic and passive ribbon microphones.
The DM1 is intended for use only with passive microphones – i.e. microphones that do not require phantom power for operation, like passive dynamic and passive ribbon microphones. It will not work with condenser microphones or active ribbon mics.
System Requirements
• Input: passive microphone (ribbon/dynamic)
• output: preamp/mixer/audio interface providing 48V phantom power
Recommended Use
Dynamic & passive ribbon microphones
Limitations
NOT suitable for phantom-powered microphones (condenser microphones, active ribbon microphones)
SPECIFICATIONS
Highlights
- Now also available in a matte-black finish
- Sophisticated class-A design and specially selected high-grade FETs for a signal boost without coloration
- Vastly lower output impedance and nearly half the noise of anything else on the market to raise any mic level with clarity
- Always a consistent +28dB regardless of the connected load to enable mics with a lower output
- Provides improved level to a preamp – all without adding noise or coloration, bringing new life to your favorite passive microphones
- All-metal housing and premium finish ensure the DM1 can handle demanding on-tour or recording/broadcast studio lifestyles
- Gold-plated XLR connector for loss-free reliable signal connection
- Perfect for podcasting, recording, or live sound
- Electrical Impedance: 135 Ohms
- Recommended Load Impedance: >1K Ohms
- Connectivity: 3-pin male/female XLR connector
- Powering: 48V Phantom Power (P48 according to IEC 61938)
- Frequency Range: 10 Hz - 120 kHz (-0.3 dB)
- Gain: 28 dB
- Current Consumption: 3.0 mA
- Max output level (0.5% THD): 8.3 dBV (2.6 V)
- Output noise level: 9 µV (a-weighted)
- Input impedance: 10k Ohms
- Preamp diameter: 19 mm (0.75 in.)
- Preamp length: 96 mm (3.78 in.)
- Preamp weight: 96 mm (3.78 in.)
Downloads
- Manual: Click here to download.
VIDEO
WHAT'S IN THE BOX
-
DM1
-
sE Logo Sticker
-
User manual with warranty card
SPECIFICATIONS
Description
An ultra-slim active inline preamp that fits seamlessly between your mic and mic pre, providing a massive +28dB of clean, transparent gain for all your dynamic and passive ribbon microphones.
The DM1 is intended for use only with passive microphones – i.e. microphones that do not require phantom power for operation, like passive dynamic and passive ribbon microphones. It will not work with condenser microphones or active ribbon mics.
System Requirements
• Input: passive microphone (ribbon/dynamic)
• output: preamp/mixer/audio interface providing 48V phantom power
Recommended Use
Dynamic & passive ribbon microphones
Limitations
NOT suitable for phantom-powered microphones (condenser microphones, active ribbon microphones)
SPECIFICATIONS
Highlights
- Now also available in a matte-black finish
- Sophisticated class-A design and specially selected high-grade FETs for a signal boost without coloration
- Vastly lower output impedance and nearly half the noise of anything else on the market to raise any mic level with clarity
- Always a consistent +28dB regardless of the connected load to enable mics with a lower output
- Provides improved level to a preamp – all without adding noise or coloration, bringing new life to your favorite passive microphones
- All-metal housing and premium finish ensure the DM1 can handle demanding on-tour or recording/broadcast studio lifestyles
- Gold-plated XLR connector for loss-free reliable signal connection
- Perfect for podcasting, recording, or live sound
- Electrical Impedance: 135 Ohms
- Recommended Load Impedance: >1K Ohms
- Connectivity: 3-pin male/female XLR connector
- Powering: 48V Phantom Power (P48 according to IEC 61938)
- Frequency Range: 10 Hz - 120 kHz (-0.3 dB)
- Gain: 28 dB
- Current Consumption: 3.0 mA
- Max output level (0.5% THD): 8.3 dBV (2.6 V)
- Output noise level: 9 µV (a-weighted)
- Input impedance: 10k Ohms
- Preamp diameter: 19 mm (0.75 in.)
- Preamp length: 96 mm (3.78 in.)
- Preamp weight: 96 mm (3.78 in.)
Downloads
- Manual: Click here to download.
VIDEO
Original: $99.00
-65%$99.00
$34.65Description
WHAT'S IN THE BOX
-
DM1
-
sE Logo Sticker
-
User manual with warranty card
SPECIFICATIONS
Description
An ultra-slim active inline preamp that fits seamlessly between your mic and mic pre, providing a massive +28dB of clean, transparent gain for all your dynamic and passive ribbon microphones.
The DM1 is intended for use only with passive microphones – i.e. microphones that do not require phantom power for operation, like passive dynamic and passive ribbon microphones. It will not work with condenser microphones or active ribbon mics.
System Requirements
• Input: passive microphone (ribbon/dynamic)
• output: preamp/mixer/audio interface providing 48V phantom power
Recommended Use
Dynamic & passive ribbon microphones
Limitations
NOT suitable for phantom-powered microphones (condenser microphones, active ribbon microphones)
SPECIFICATIONS
Highlights
- Now also available in a matte-black finish
- Sophisticated class-A design and specially selected high-grade FETs for a signal boost without coloration
- Vastly lower output impedance and nearly half the noise of anything else on the market to raise any mic level with clarity
- Always a consistent +28dB regardless of the connected load to enable mics with a lower output
- Provides improved level to a preamp – all without adding noise or coloration, bringing new life to your favorite passive microphones
- All-metal housing and premium finish ensure the DM1 can handle demanding on-tour or recording/broadcast studio lifestyles
- Gold-plated XLR connector for loss-free reliable signal connection
- Perfect for podcasting, recording, or live sound
- Electrical Impedance: 135 Ohms
- Recommended Load Impedance: >1K Ohms
- Connectivity: 3-pin male/female XLR connector
- Powering: 48V Phantom Power (P48 according to IEC 61938)
- Frequency Range: 10 Hz - 120 kHz (-0.3 dB)
- Gain: 28 dB
- Current Consumption: 3.0 mA
- Max output level (0.5% THD): 8.3 dBV (2.6 V)
- Output noise level: 9 µV (a-weighted)
- Input impedance: 10k Ohms
- Preamp diameter: 19 mm (0.75 in.)
- Preamp length: 96 mm (3.78 in.)
- Preamp weight: 96 mm (3.78 in.)
Downloads
- Manual: Click here to download.
