DESCRIPTION

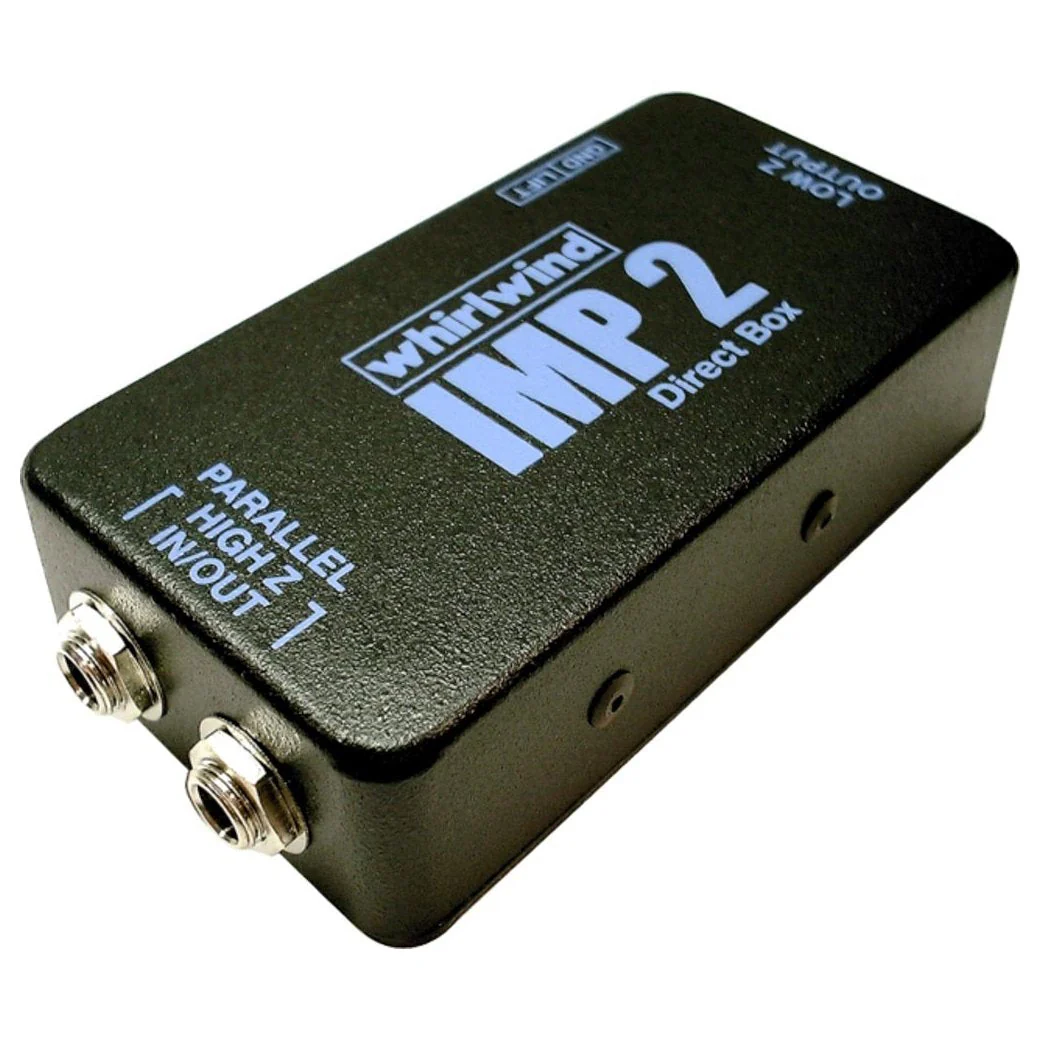

Built rugged on the inside and outside, this is the world famous DI found in pro systems everywhere. The IMP 2 converts a line or instrument level unbalanced signal to a low impedance mic level balanced signal.

Features include:

• 1/4" parallel wired in/out jacks
• Ground Lift switch to help isolate hum and buzz
• Uses Whirlwind's TRHL transformer

It's the ideal direct box for anyone requiring professional quality and durability in an economical package.

Model - IM2

• Impedance Ratio (input to output): 133:1
• Frequency Response: 20Hz-20kHz ±1dB
• Level Change: (input to output): -20dB

CHARACTERISTICS

• Box Steel enclosure:
• 2 - 5/8” W : 4 – 3/8” L : 1 – 3/8” D
• Electrical
• Passive direct box
• Impedance Ratio (input to output): 133:1
• Frequency Response: 20Hz-20kHz ±1dB
• Level Change: (input to output): -20dB
• Additional Features
• 1/4" parallel-wired in/out jacks
• Ground Lift switch to help isolate hum and buzz
• Uses Whirlwind's TRHL transformer
